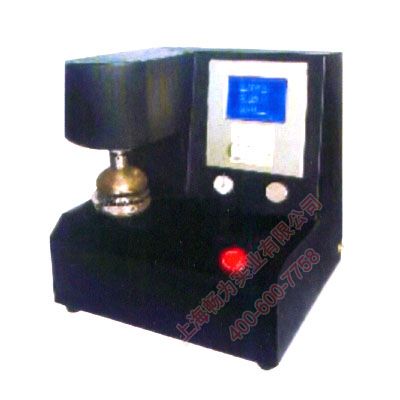

商品名称：TNG34 数字式顶破测试仪

数字式胀破强度测试仪，可检测针织物胀破强度，将油压施加在特定面积的橡胶膜上，再迫使织物胀破。本仪器配有压力显示器、峰值保持记录及峰值上限设置，可更换的橡胶膜片，手动夹紧装置。

To determining the bursting strength of woven or knitted fabrics, non wovens, paper and board by application of a hydraulic load under a rubber diaphragm of a specific area. Provided with a digital readout of pressure with peak hold facility, renewable rubber diaphragms. manual clamping device with clear acrylic bell.

试样尺寸直径Sample Diameter：30.5±0.05mm
弹性膜片尺寸直径Flexible Patch-size Diameter: 80mm
胀破强度及分辨率Strength and Resolution : 0-7Mpa(7000Kpa/1015psi),0.002Mpa
电源Power: AC220V，200W，50-60Hz
外形尺寸Dimensions: 560×380×470mm(H×W×D)
重量Weight: 35.5kg

货号Model：
TNG34A数字式顶破强度测试仪（触摸屏显示）
TNG34 Digital Bursting Strength Tester (Touch Screen Display)
TNG34B数字式顶破强度测试仪（触摸屏，胀破高度显示）
TNG34 Digital Bursting Strength Tester (Touch Screen bursting High Display
TNG34C电脑控制（显示胀破曲线，胀破高度）
TNG34C Computer Control ( Display Bursting curve and height)
标准Standards：ASTM3786、ISO2758，ISO2960、JIS L1018/L1093，IWS TM170
